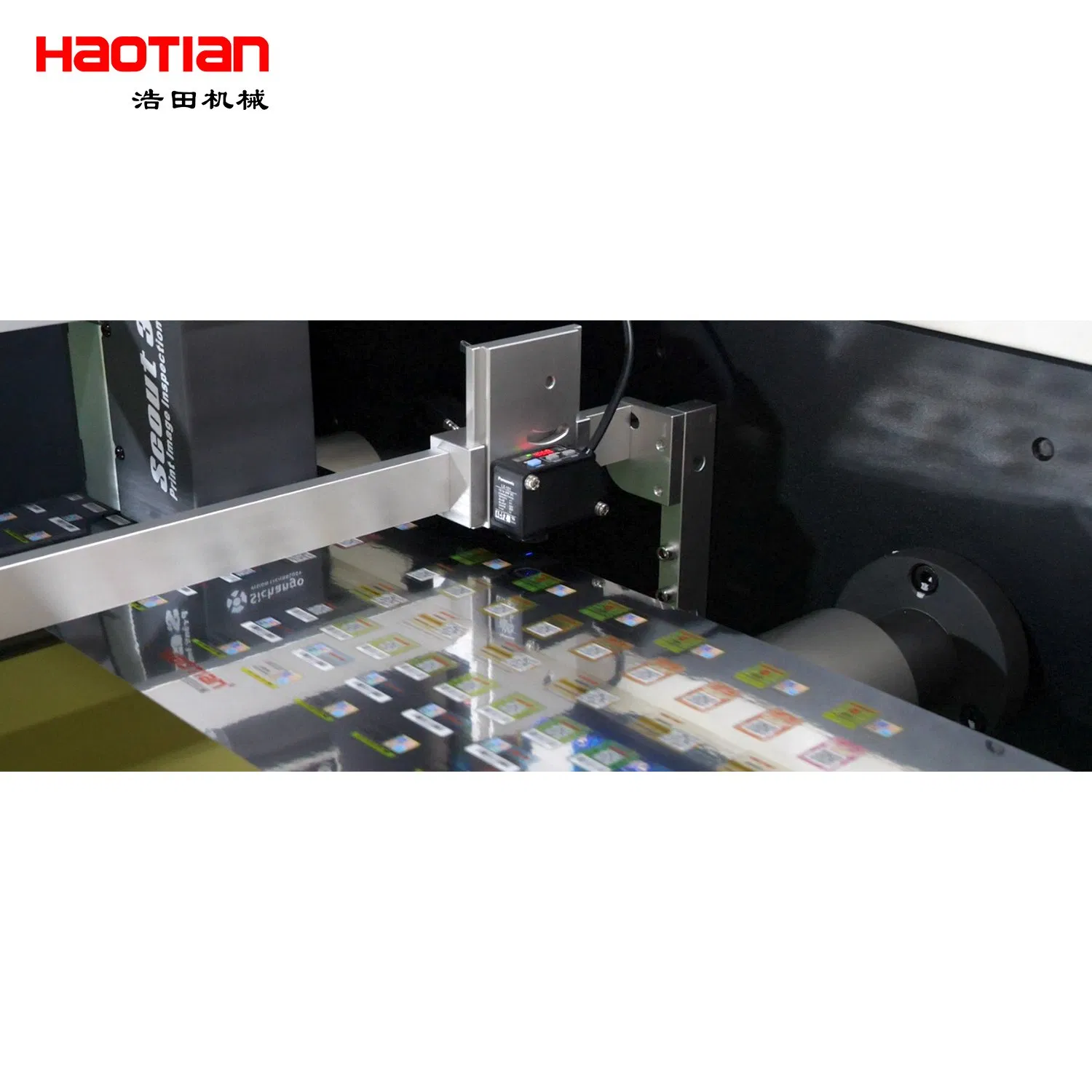

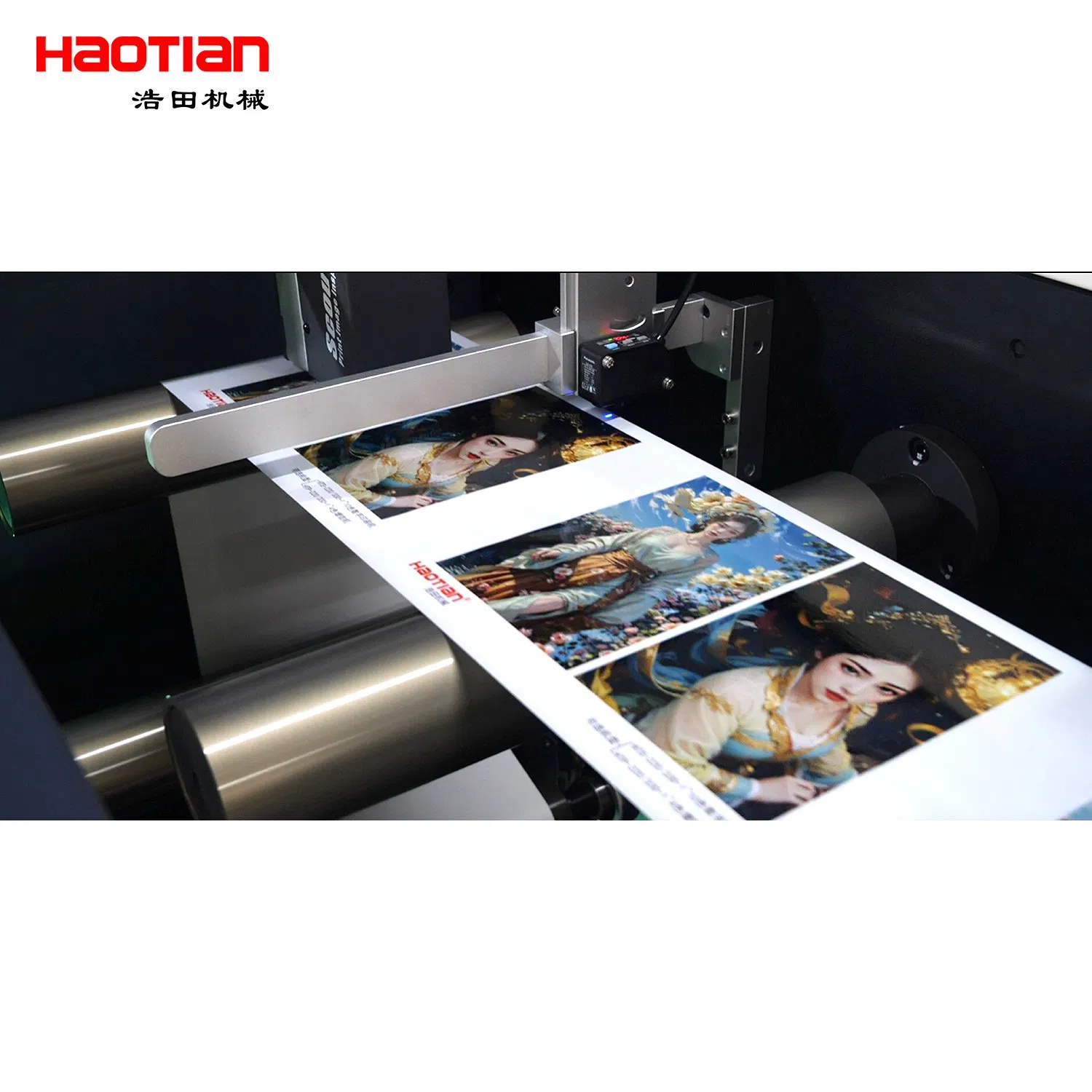

High Speed Full Color Single Pass Digital UV Inkjet Digital Printing Machine

1 / 5

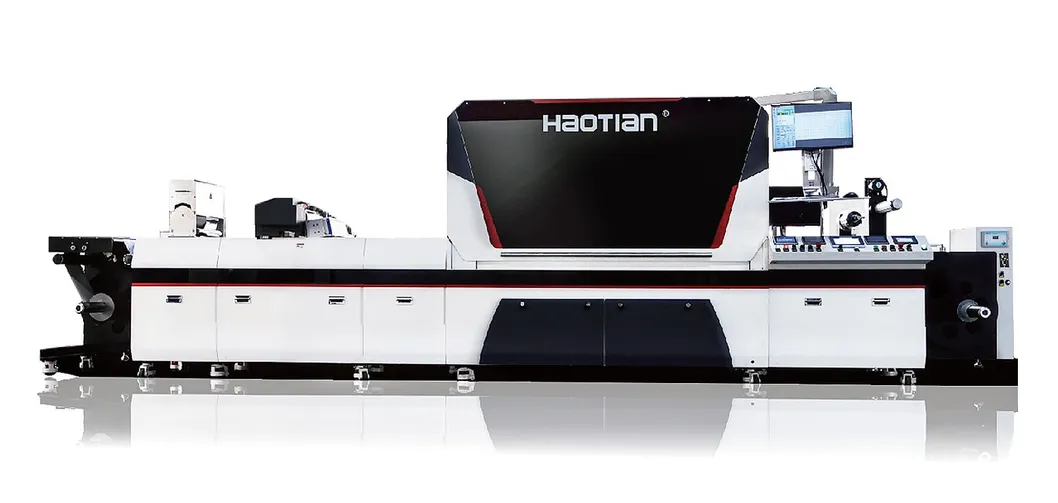

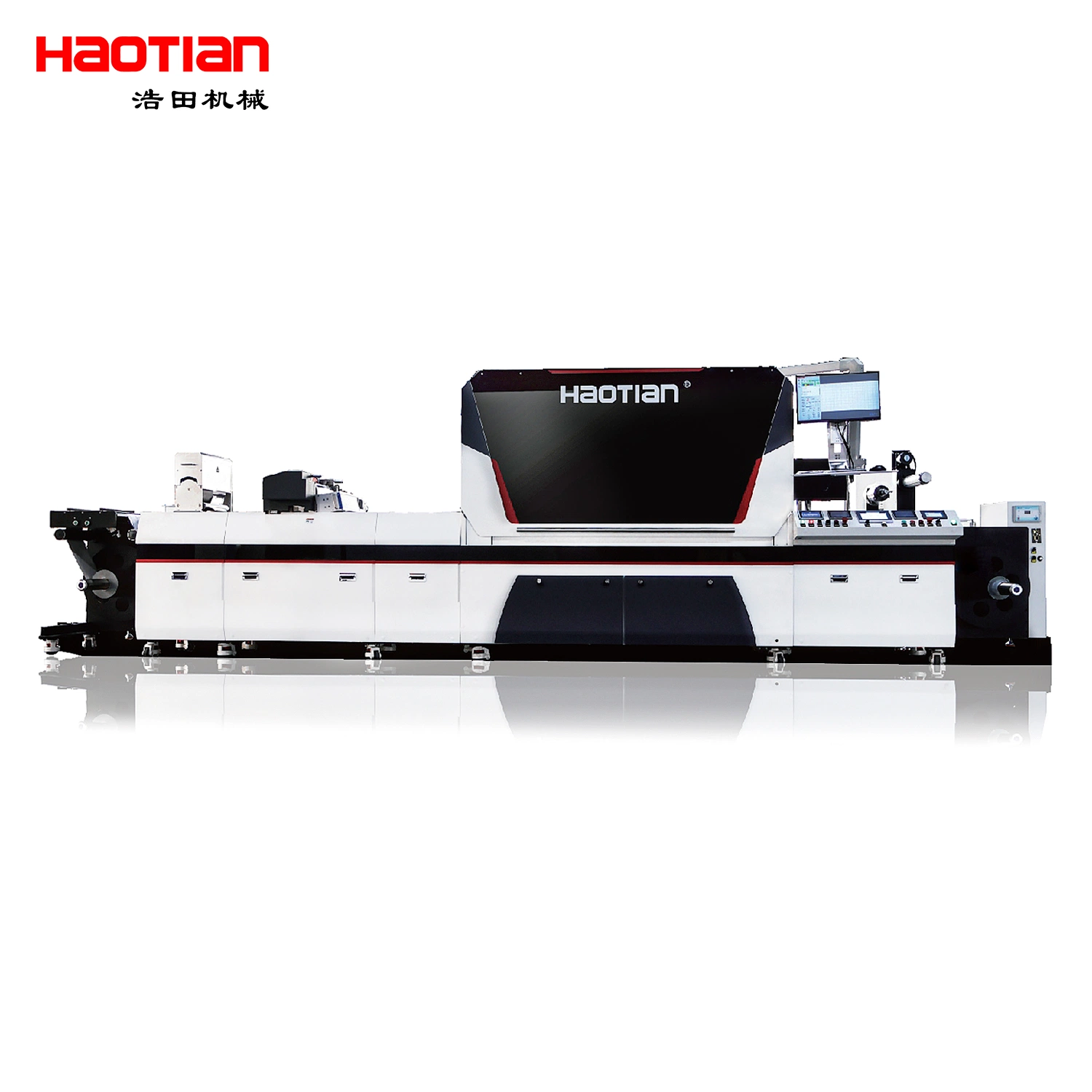

High Speed Full Color Single Pass Digital UV Inkjet Digital Printing Machine

Customization:	Available
After-sales Service:	Free Spare Parts, Field Installation, Commissionin
Warranty:	One Year

Send Inquiry

Product Description

■

Overview & Basic Info

Model NO.

HGP-220/330-4~9C

Printing Color

Nine Colors

Applicable Materials

Semigloss, Film, Universal Label Roll PAC

Paper Feed Width

250mm/350mm(Max)

Actual Print Width

216mm/324mm(Max)

Production Capacity

50m/Min

HS Code

8443322190

Mechanical Weight

Approx. 4.2 tons

Packaging & Delivery

Package Size

685.00cm * 185.00cm * 200.00cm

Gross Weight

4200.00kg

■

Product Description & Parameters

Printing Technology	Single pass UV inkjet, DOD industrial grade nozzle	Input Air Source	0.6~0.8mp
Resolution	DPI 600x600 / 600x1200 / 600x2400	Input Power	3 Phase 380VAC 50/60Hz 10kw
Max Speed	50m/min	File Formats	PDF, JPEG, TIFF
Material Types	Coated/Uncoated paper, Transparent/Opaque media	Substrate Thickness	0.01-0.8mm roll material
Max Roll Diameter	650mm	Drying Method	9 LEDs + 1 UV Lamp with Water-cooled rollers

Functional Advantages

✔Adopting world-top high-speed industrial piezoelectric nozzle for 600x600dpi quality at 50m/min.

✔Non-contact inkjet printing with strong adaptability (PVC, PET, PE, BOPP, Foil) without pre-coating.

✔Plate-free full-color printing from a single sheet for both transparent and opaque materials.

✔Variable Data Print System for barcodes, QR codes, and serial numbers to ensure traceability.

✔Patented "e-clean" automatic nozzle cleaning and maintenance system to extend service life.

✔Stable circulating ink supply with world-class water degassing and segmented filtration.

✔Dual servo tension control system ensuring smooth paper feeding and accurate registration.

✔Equipped with built-in corona, dust, and electrostatic removal devices for better ink adhesion.

Print Samples

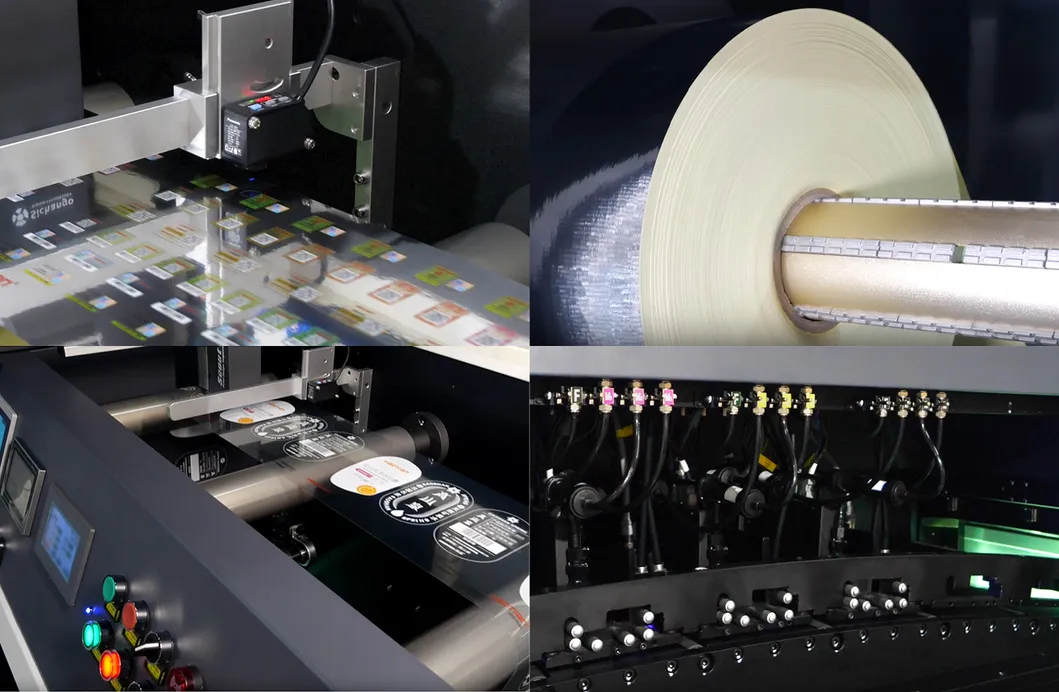

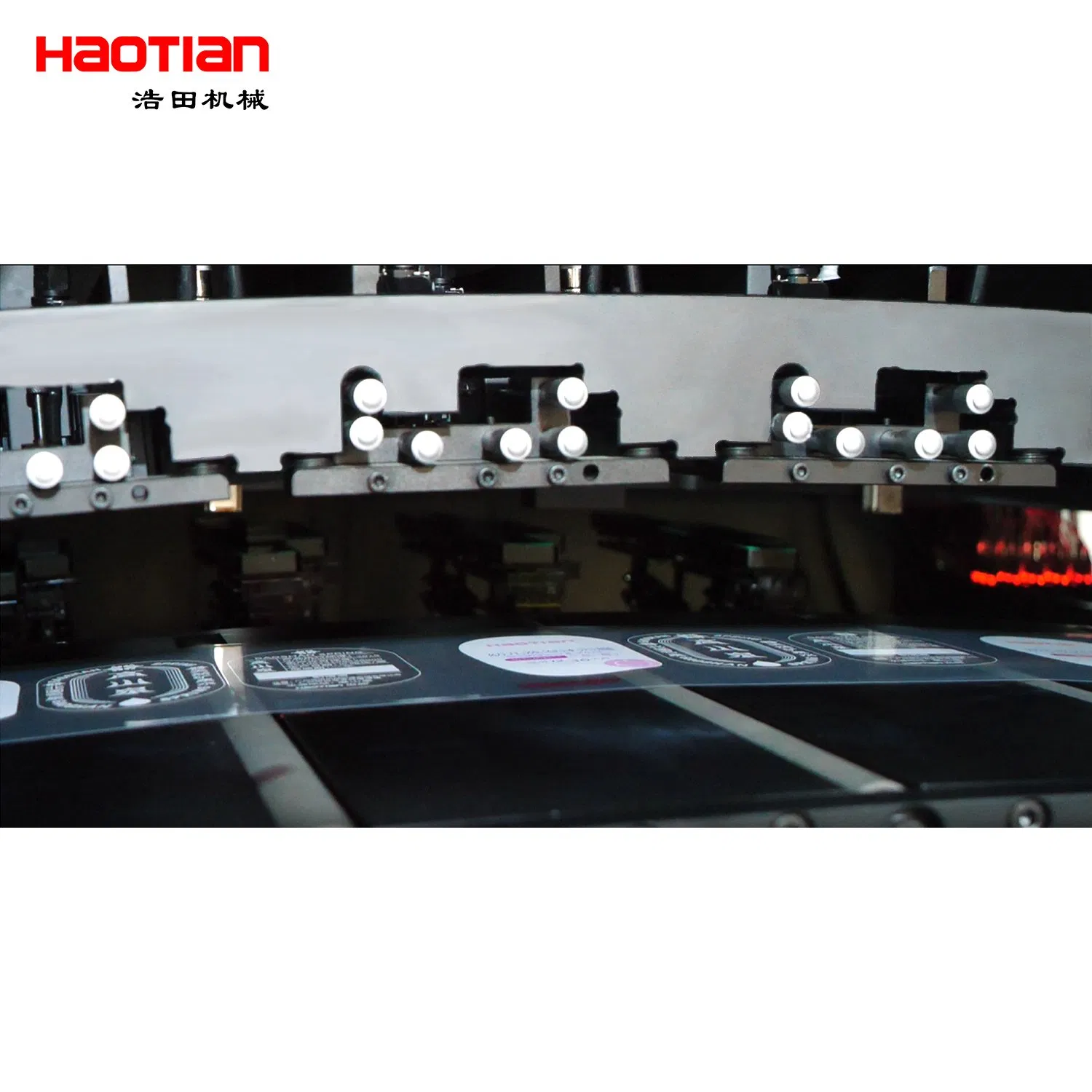

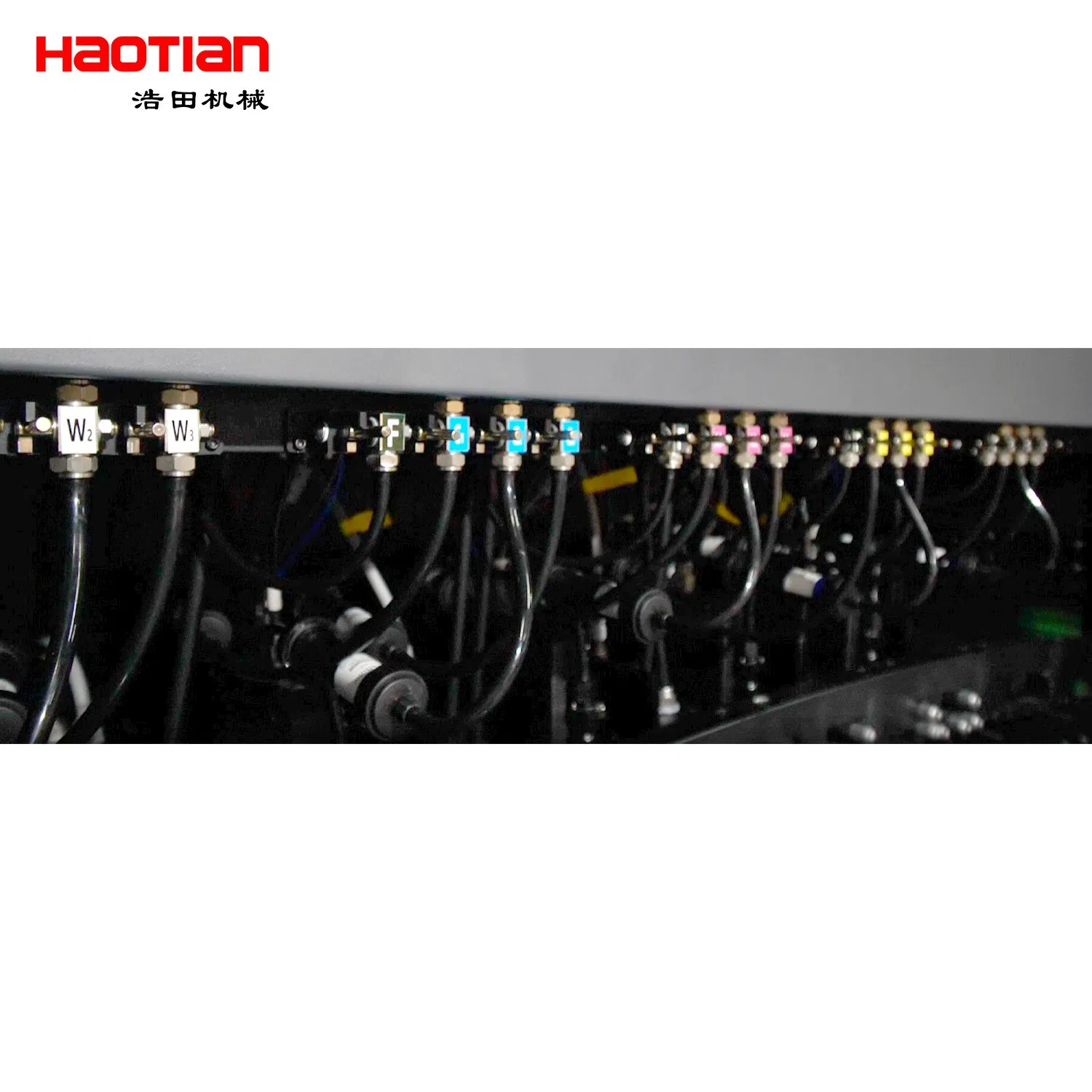

Machine Details

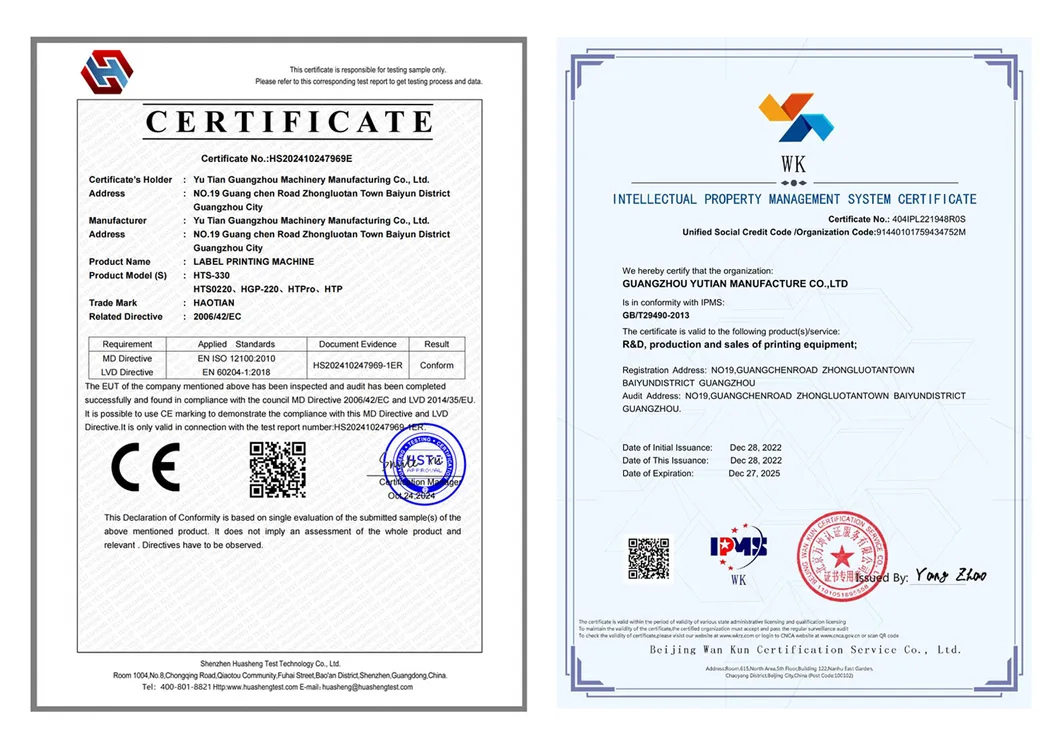

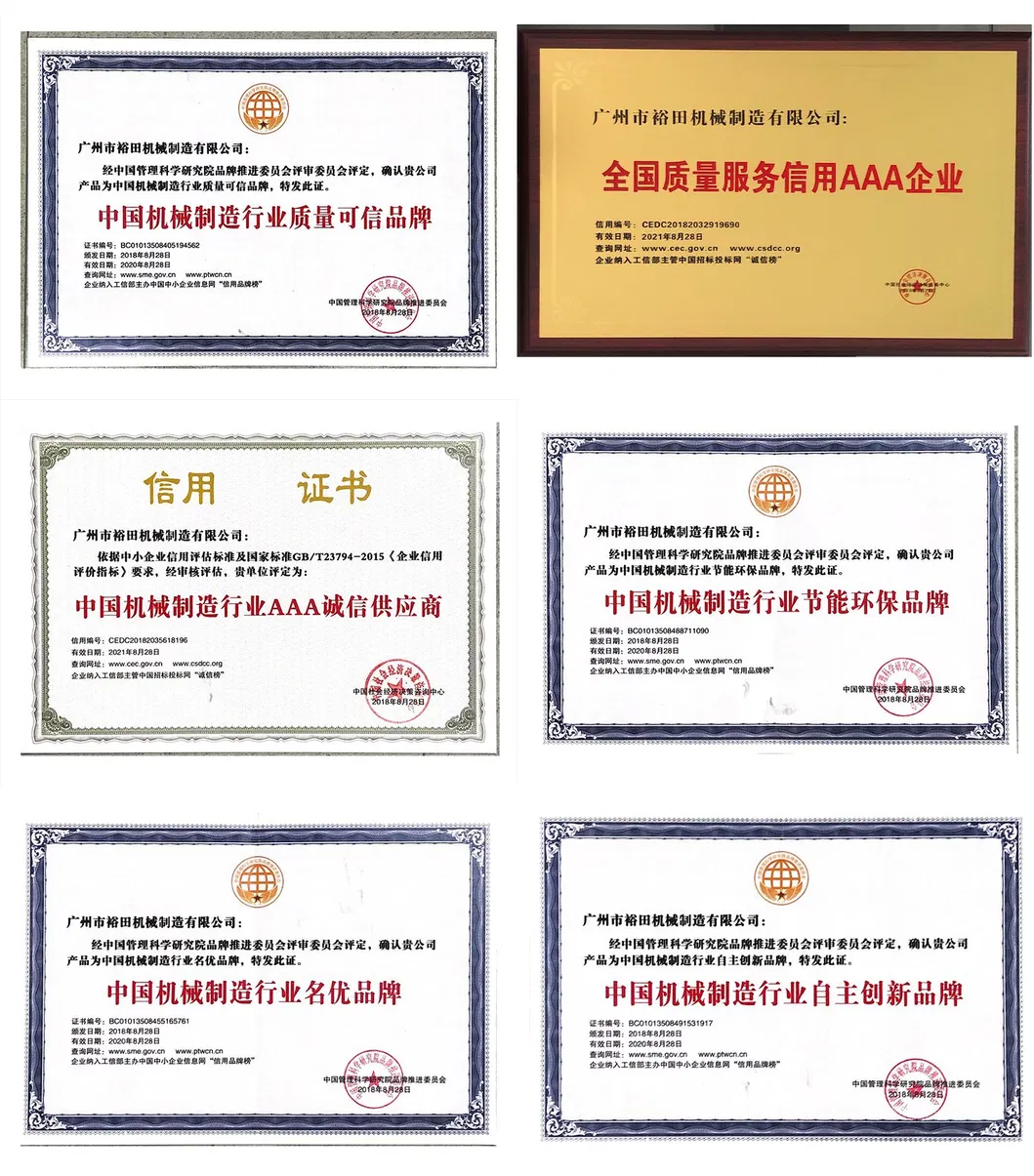

Enterprise Certificates

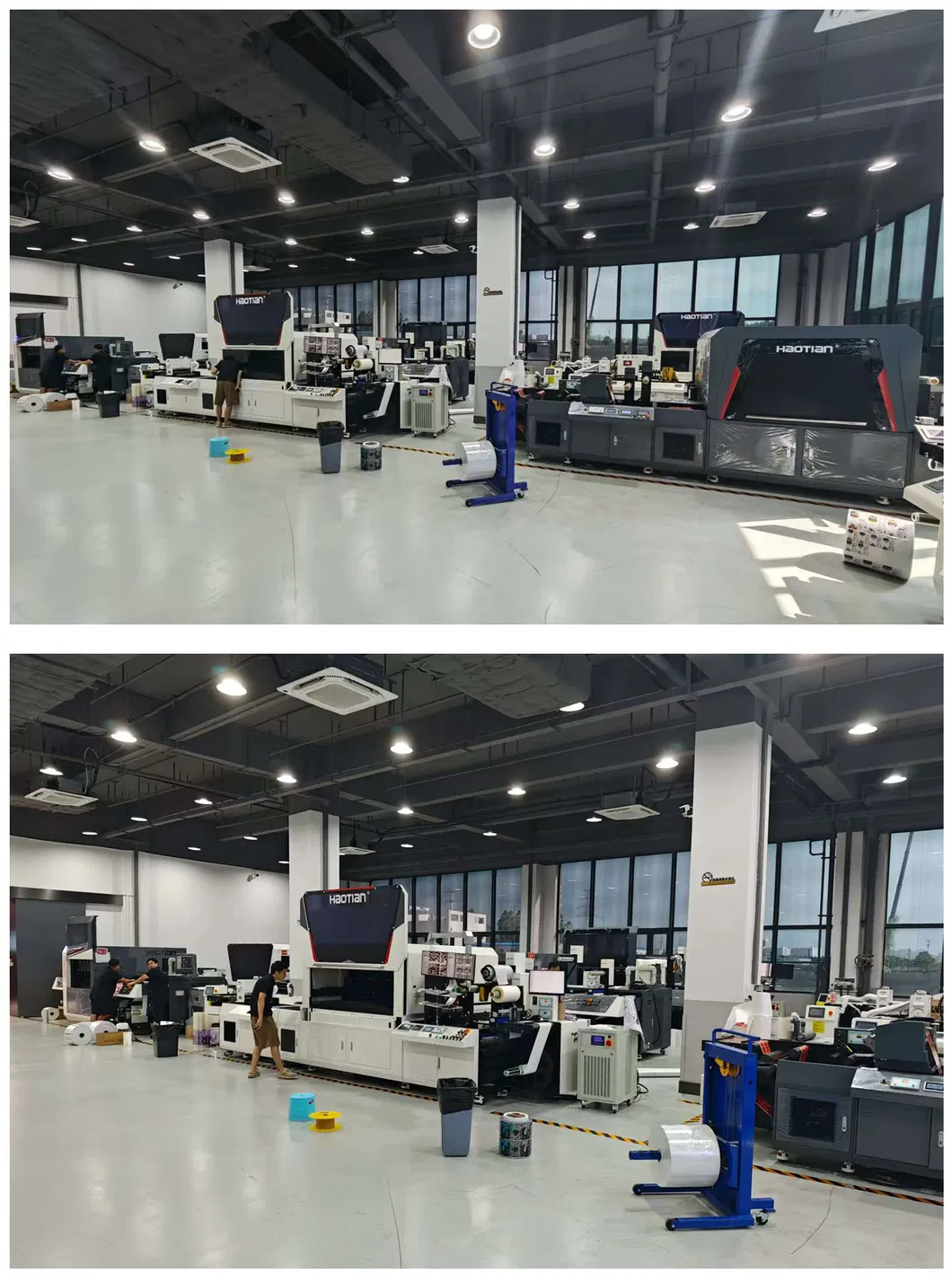

Our Workshop & Production

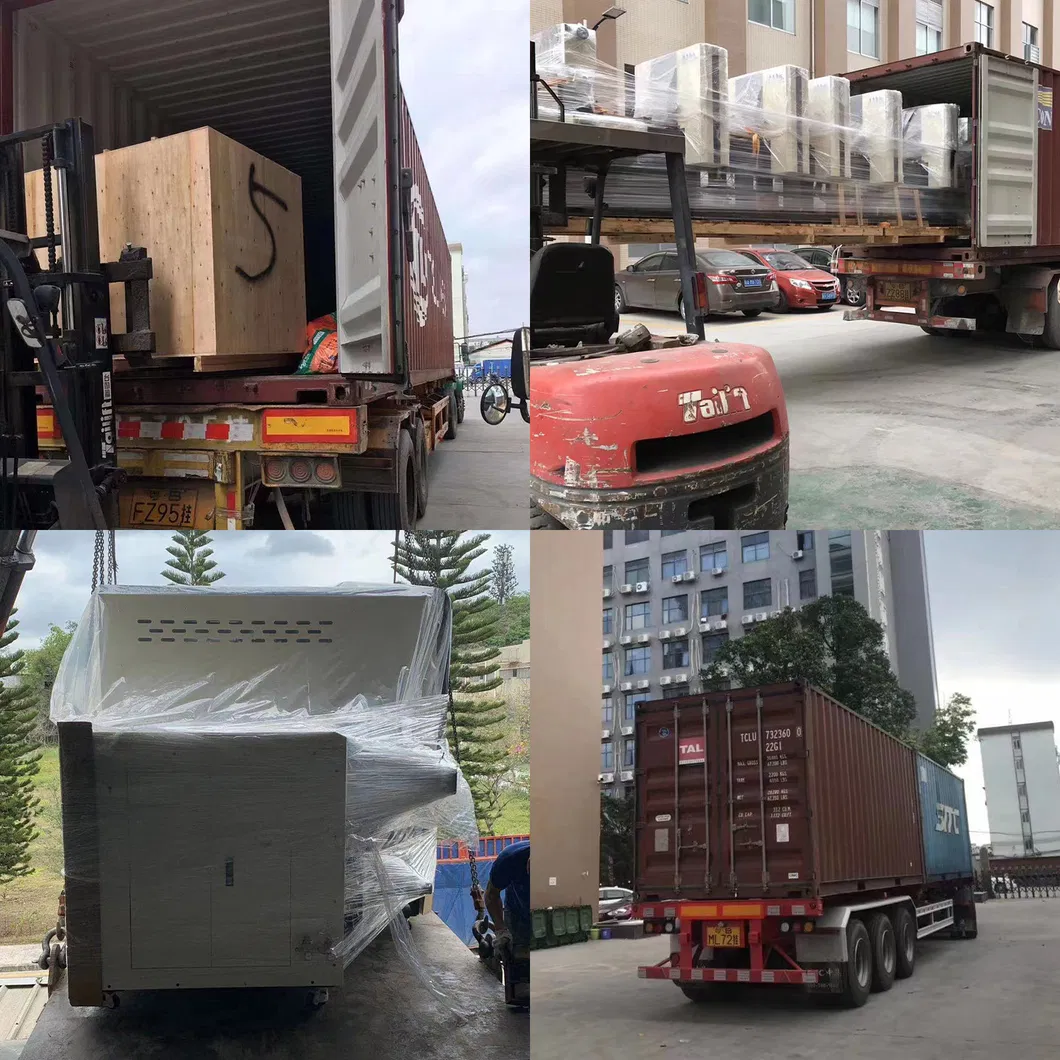

Packaging, Shipping & Exhibition

Frequently Asked Questions

1. Are you a professional manufacturer?

Yes, we have been specializing in the production of printing machinery for over 20 years, focusing on quality and innovation.

2. Do you provide machine installation and adjustment services?

Yes, we can dispatch professional technicians to the customer's facility for full machine installation, setup, and adjustment.

3. What is the guarantee period and after-sales service policy?

We offer a 12-month guarantee from the date installation is finished. During this period, we provide spare parts free of charge for quality issues caused by us.

4. How are shipping discrepancies handled?

In case of any quality or quantity discrepancy at the destination port, claims should be filed within 30 days after the goods arrive.

5. Do you offer long-term technical support?

Yes, we provide long-term technical guidance and charge only the cost price for spare parts once the guarantee period expires.

6. How long is the quotation valid for?

Our quotes are typically valid for 60 days from the date of the formal quotation.
